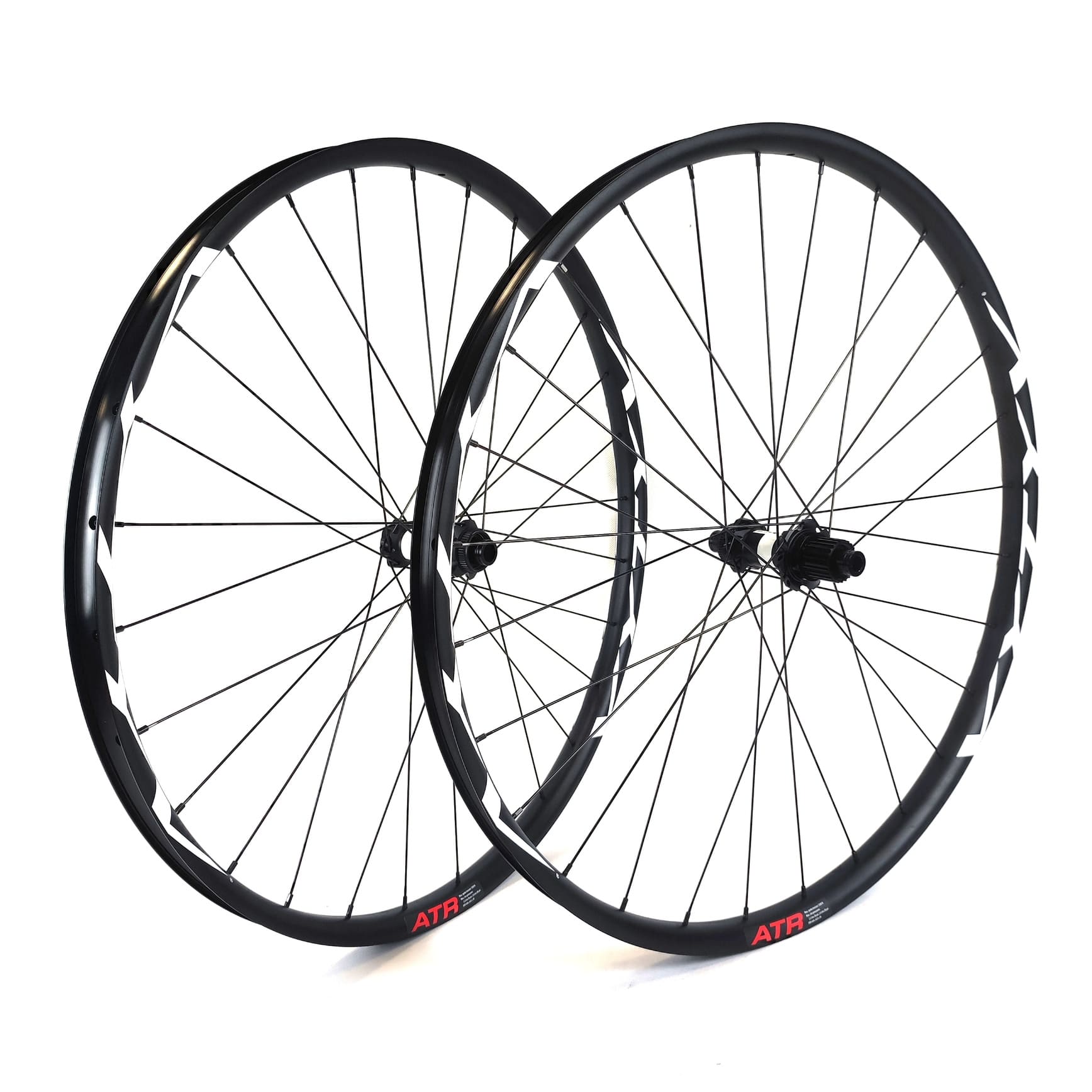

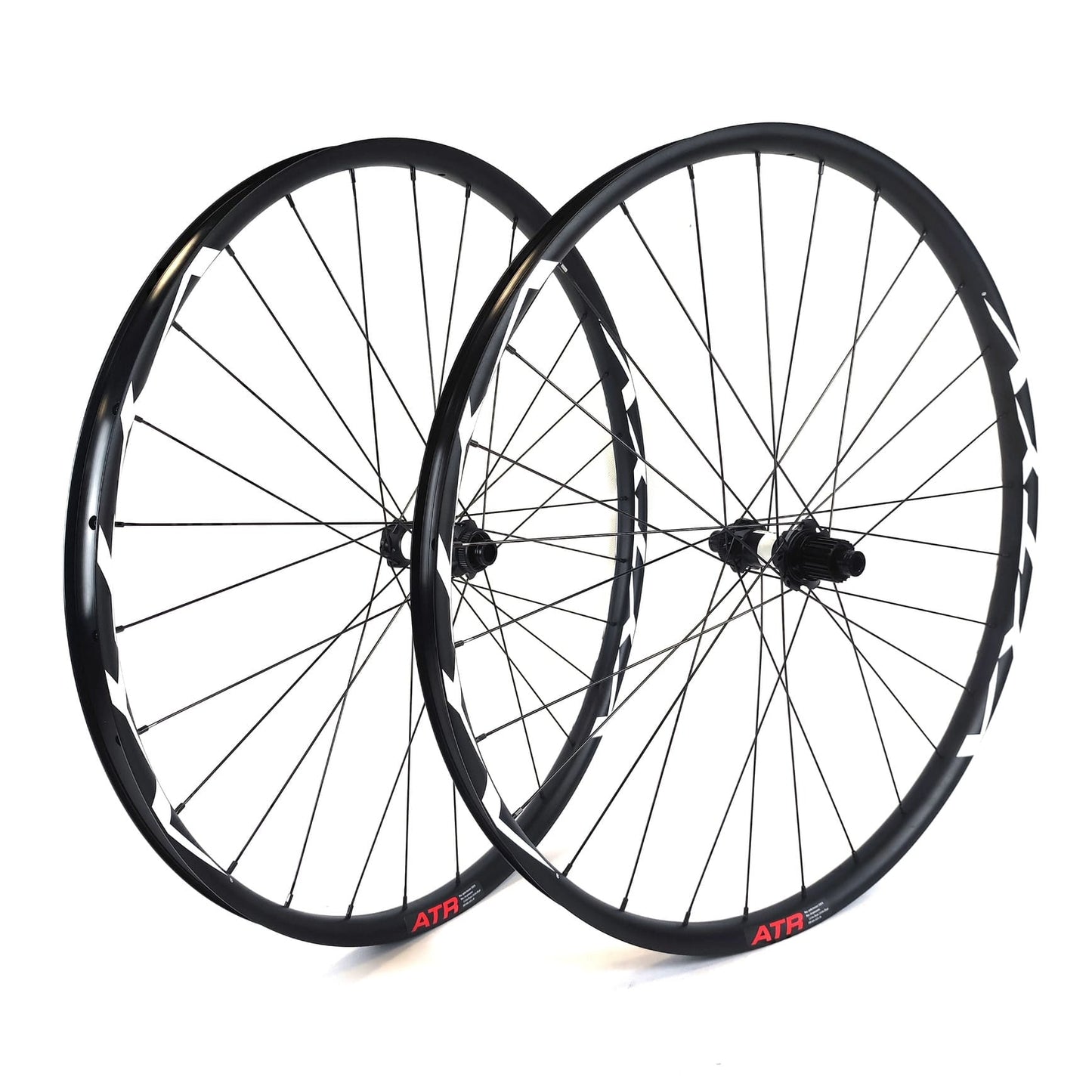

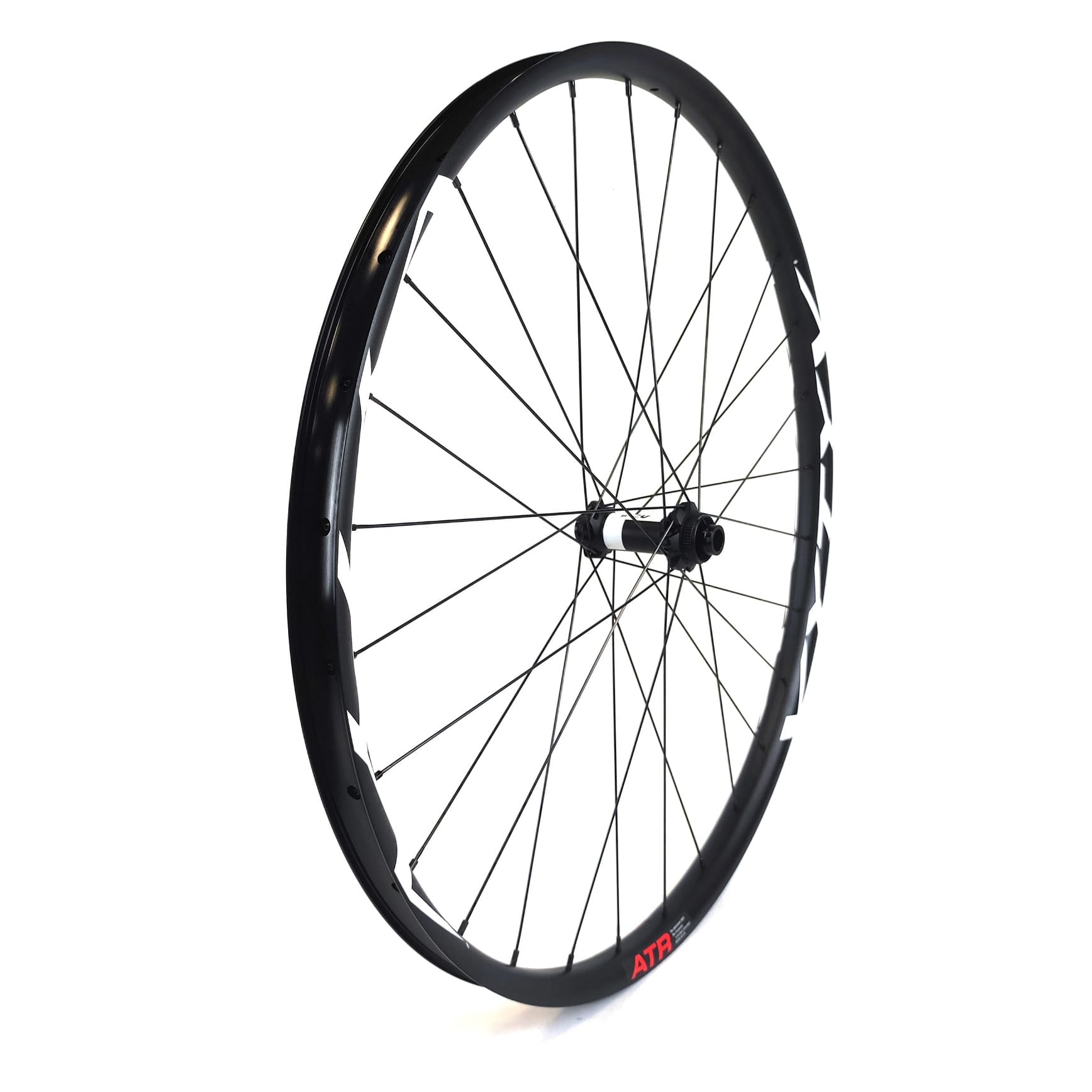

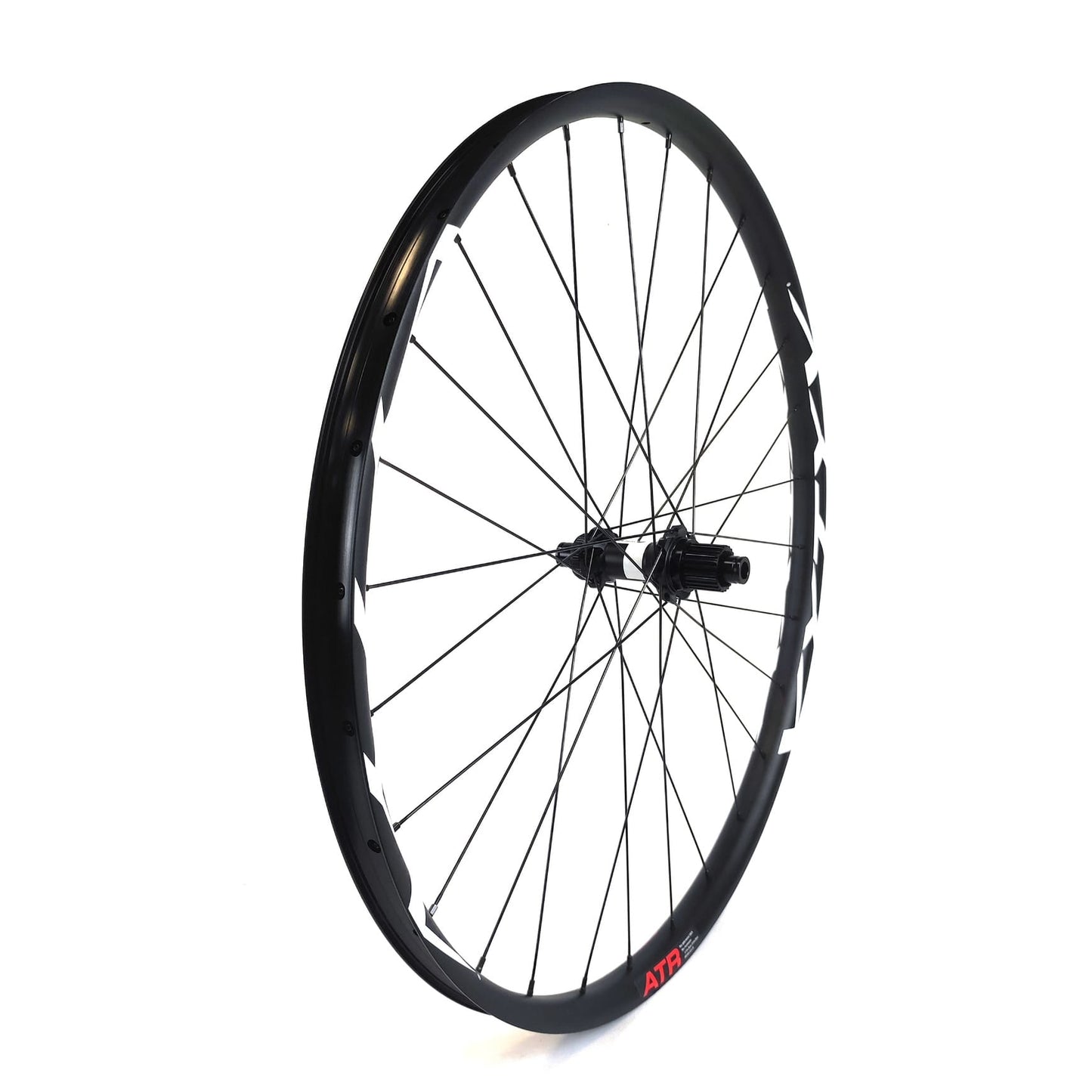

VYTYV ATR 29 – Alloy All Terrain Ready Wheelset

Lightweight Strength & Reliability for XC, Marathon & All-Mountain

The VYTYV ATR 29 wheelset (All Terrain Ready) is engineered for riders who want a dependable and responsive alloy wheelset that performs across disciplines. From cross-country races and marathon epics to all-mountain adventures, the ATR combines lightweight agility with the toughness needed for technical terrain.

Rims – VYTYV ATR 29 Alloy

• Material: AL-6066 Superlight Alloy

• Internal Width: 30 mm | External Width: 34.5 mm | Depth: 18 mm

• Joint: Welded for maximum strength and durability

• Drilling: Symmetrical (optimized spoke tension)

• Hole Count: 28H

• Valve Hole: Presta 6.5 mm

• ERD: 604 mm

• Weight: 495 g per rim

• Tubeless Ready – optimized for modern, wide XC & all-mountain tires

• Brakes: Disc only

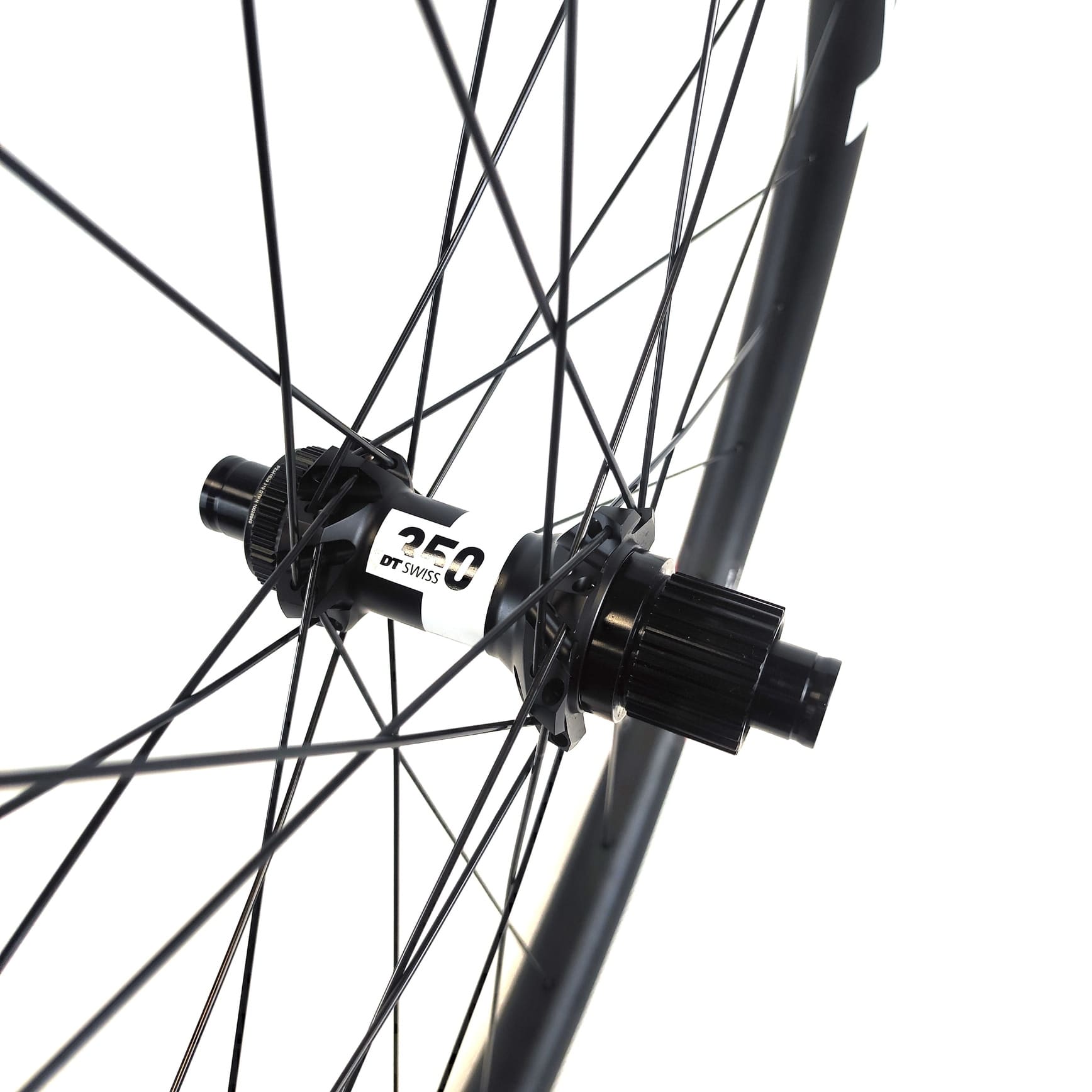

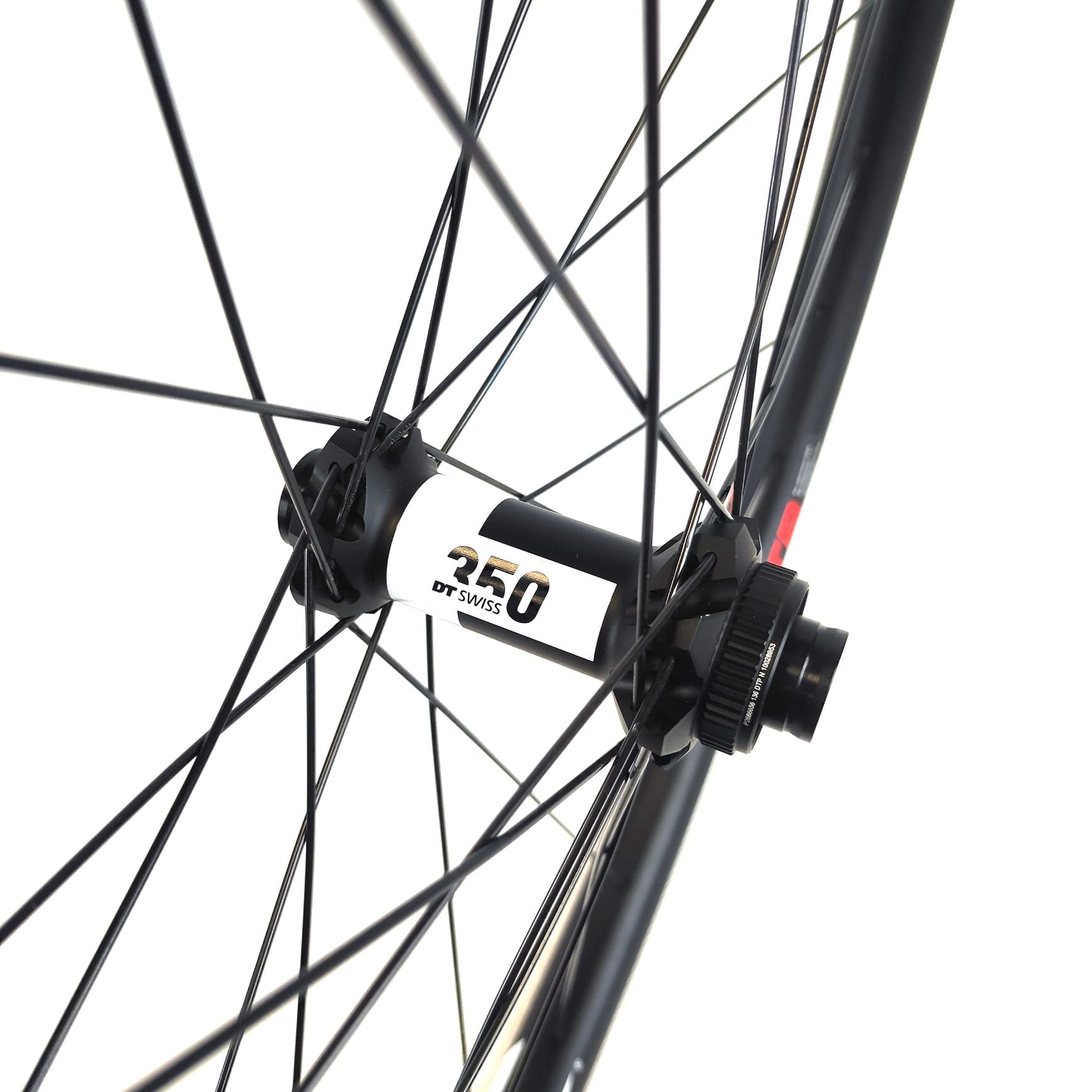

Hubs – DT Swiss 350 Straightpull (IS or CL)

• Versions: Centerlock or IS 6-bolt

• Axle Standards: Multiple options available (Boost & non-Boost front/rear, with adapters if required)

• System: Ratchet SL 36T – fast, reliable engagement & easy maintenance

• Bearings: High-quality sealed cartridge bearings

• Straightpull spoke interface – for stiffness and direct power transfer

Spokes & Nipples

• Spokes: Sapim Laser 2.0–1.5–2.0 (butted, straightpull)

• Nipples: Sapim Double Square Secure Lock – black alloy

Weights

• Front Wheel: ~760 g

• Rear Wheel: ~850 g

• Total Wheelset: ~1610 g

🚵 Performance Highlights

• 30 mm inner width supports modern XC, marathon & all-mountain tires for grip and control

• Tubeless-ready profile reduces rolling resistance and improves comfort at lower pressures

• Welded rim joint delivers long-lasting strength under demanding riding

• DT Swiss 350 hubs with Ratchet SL provide smooth rolling and precise engagement

• Lightweight Sapim Laser spokes with Secure Lock alloy nipples ensure stiffness and resilience

All Terrain Ready

The VYTYV ATR 29 Alloy Wheelset is built to handle everything from fast XC loops to marathon endurance races and all-mountain challenges. With its balance of low weight, wide profile, and proven Swiss hub technology, it’s your all-rounder for speed, control, and reliability on any terrain.
